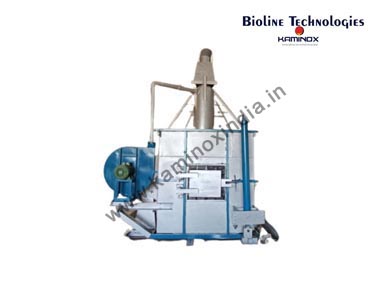

Aluminium Recycling Plant consist of, Aluminium scrap melting Furnace, Automatic aluminium ingot Casting Machine, Centralized air polluting control system, Cold dross processing plant

Product: Secondary Aluminium Alloy Ingot

Application of Product: Specially in automobile Spare parts Manufacturing industries, Motor Manufacturing Industries, Electronics Industries, Industrial manufacturing Machineries.

Capacity: 250T/Month upto 3000T/Month

We also Manufacturing of.

Aluminium cold dross processing plant.

Aluminium chips processing plant.

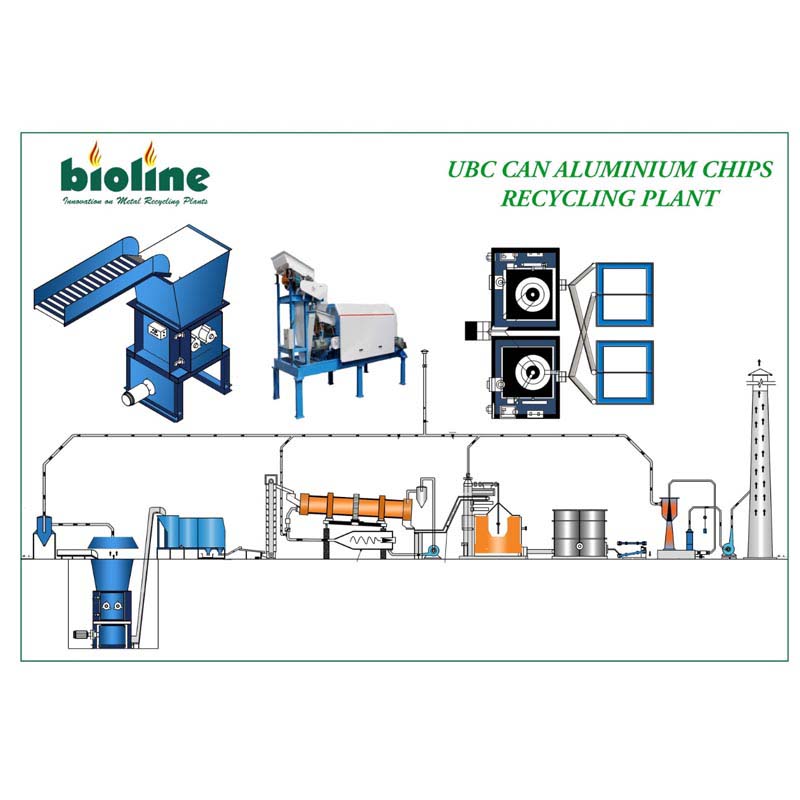

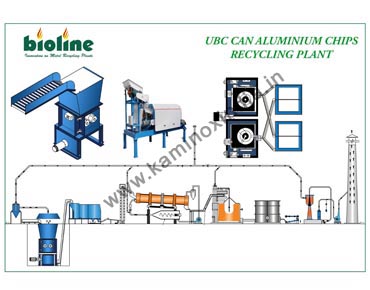

UBC processing plant.

Product Description:

Plant process capacity: - 620 MT/ Month.

26 days operation.

23 T (appr) /day production /day.

Products: - 97-98.5% ingots, deoxidant ingot (notch bar ingot)

Raw material:- Shredded UBC,6063,utensils,tallic etc.

Fuel consumption / T alloy mfg:- 90 kg @8700 Kcal/kg.( approximate)

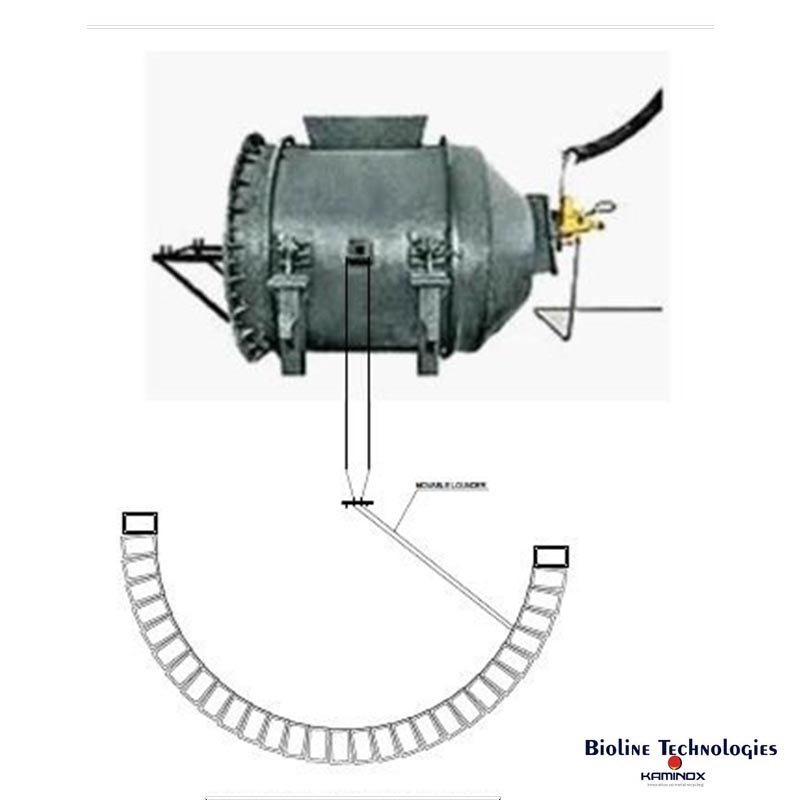

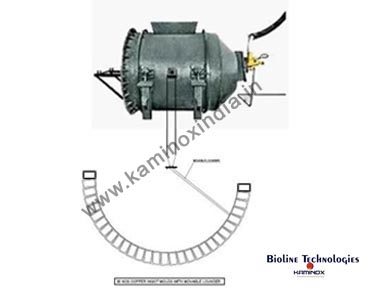

Copper Smelting Includes :

• Sorting of Scrap
• Smelting of Scrap
• Ingot Casting
• Air Pollution Control System
• Sorting Manual Sorting
• Smelting: Includes
  Melting Blister Copper 99% Sulfur Removing
  Oxygen Removing
  Reduction Process - Anode Copper 99.5%
• Ingot/Anode Casting
• Air Pollution Control System
• Inlet dust load= 1000gm/Nm3
• Outlet permissible limit = L 50 mgrn/Nm3

The ability to tilt and rotate the Zinc Recycling Plant is its main advantage. Prior to locking the furnace, lead scrap is placed inside with smelting flux. The material is heated until it reaches the melting point using an oil/gas burner that is installed on the door.

Less energy is required to make metal, making it more economical. Fewer quarries and mines, less noise, and lighter traffic all contribute to a lower environmental impact. conserves precious raw materials; metal ore reserves will last longer.

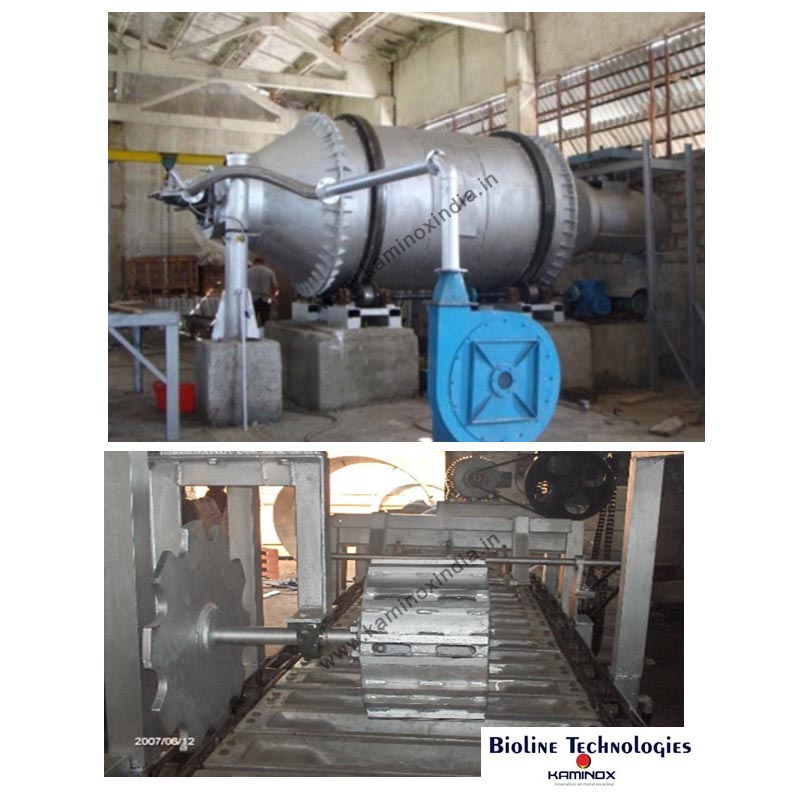

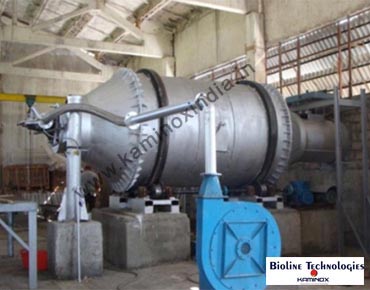

• Lead Recycling Plant Consist of,
• Battery Cutting machine
• Lead melting Rotary Furnace Lead collecting C.I trolleys
• Dry Air Pollution Control System for furnace Lead refining furnace with stirrer
• Automatic lead Casting Machine
• Product : Refined/Lead Alloy Ingot / Lead Ingot
• Application: Battery Plate Manufacturing Industries, Lead oxide Manufacturing Industries etc.

• Product Description :

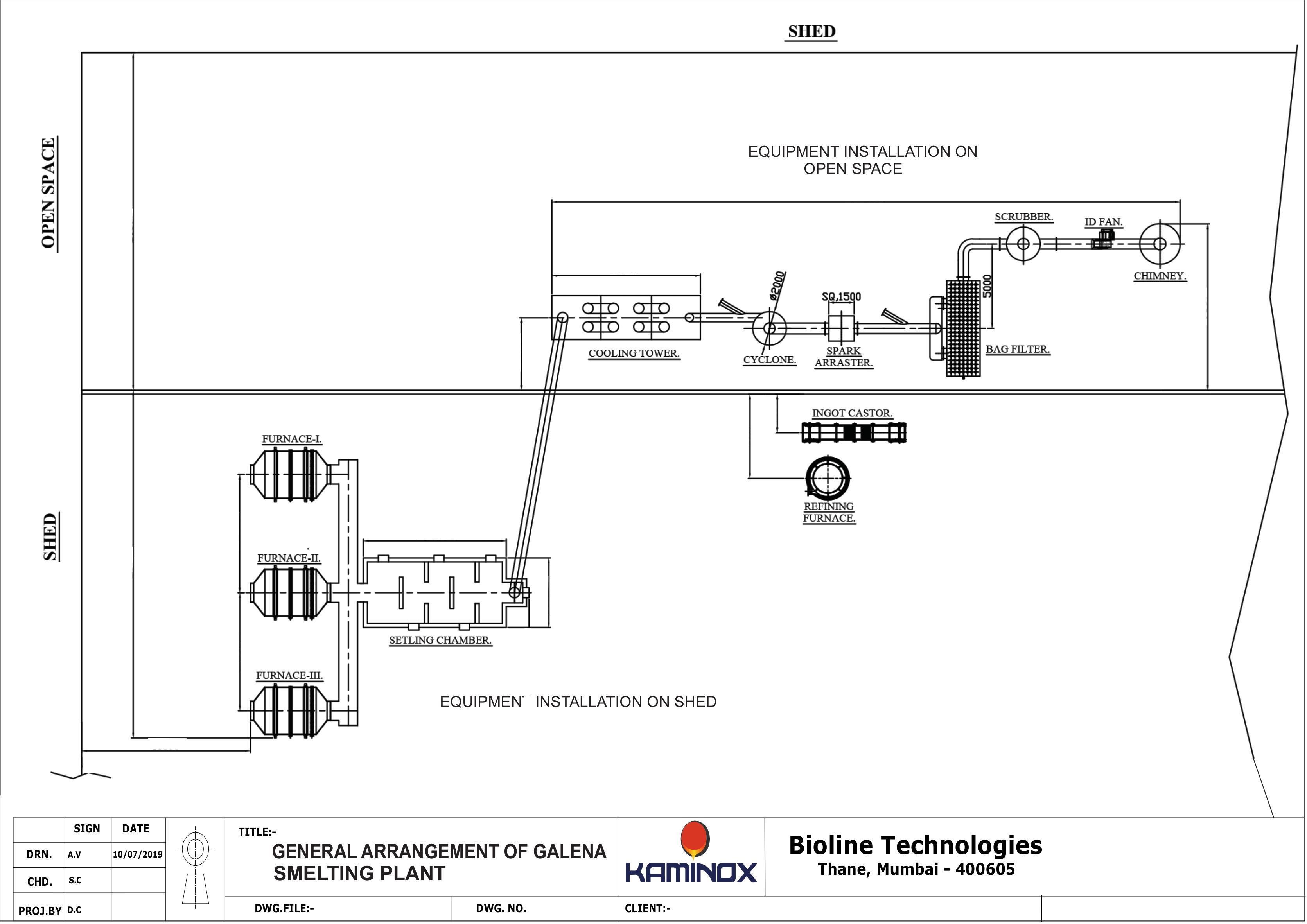

• Plant capacity - 100 TON / DAY
• 26 days operation.
• 1 day working hr = 24 hrs
• 100 T /day (appr) process on basis of 3 nos. Rotary Furnaces.
• Product- Refined lead ingot.
• Raw material- Lead concentrate from pulverize Galena.
• Fuel consumption – 135 kg/hr.(max) @8700 Kcal/kg.

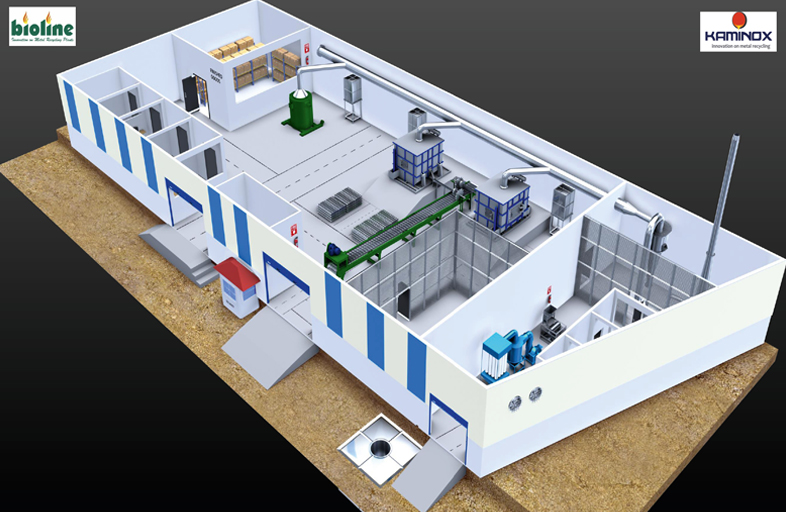

• Parameters For Aluminium Cold Dross Processing Plant
• Product- Refined aluminium ingot
• Raw material- Aluminium dross.
• Fuel consumption / IT dross process-75 kg @8700l/Nm3.
• Aluminium Cold Dross Processing Plant Includes,
• Pulveriser
• Magnetic Vibrating Screen
• Crucible Furnace / Rotary Furnace / As Per Raw Material
• Automatic Ingot Casting Machine
• Pollution Control System
